Description
Product Details
Product Details
FACE MATERIAL:

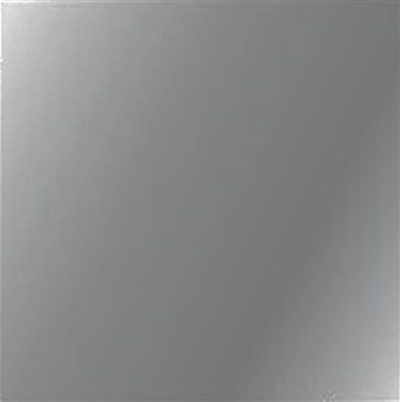

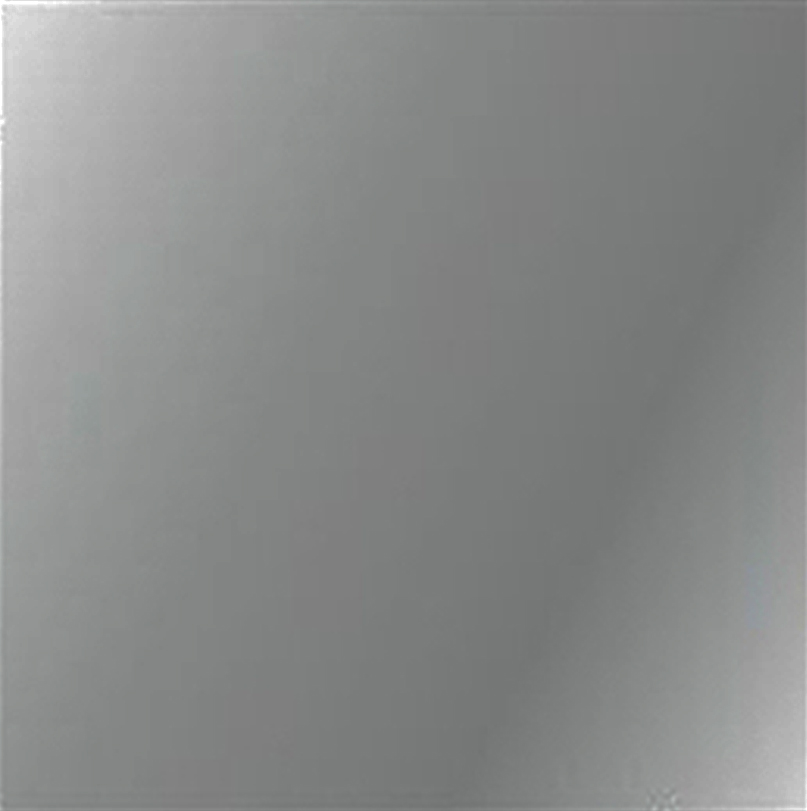

4mm grey tinted silvered glass (other tints available)
CORE MATERIAL:
N/A
BACK MATERIAL:
Impact resistant layer from 4mm expanded polyether polymer
FACE MATERIAL:
4mm grey tinted silvered glass (other tints available)
CORE MATERIAL:
Impact resistant layer from 2mm expanded polyether polymer
BACK MATERIAL:
12mm (nominal) thick lightweight composite board obviating the need for smooth continuous backgrounds
NOMINAL THICKNESS:
8mm
BACKGROUND:
Smooth continuous substrate
EDGE TREATMENT:
Polished all round (PAR)
WEIGHT:
10kg per m² (nominal)
MAXIMUM PANEL SIZE:
3000 x 1200mm
SAFETY:
Shatterproof: Impact resistant to BS EN 12600
Fire: BS 476 Part 6 & 7 Class 1. Complies with requirements for Class 0.
(see Test Data Summary Sheet)
JOINT TREATMENT:
Arrised butt vertical joint, bright polished anodized aluminium ‘H’ section trims to horizontal joints if required - refer to Product Manual or Chelsea Artisans for recommendations.
FIXING METHOD:
Adhesive and/or bright polished anodized aluminium ‘J’ section trims - refer to the Product Manual, Advice Manual or Chelsea Artisans for recommendations.
ACCESSORIES:
Purpose made bright polished anodized aluminium ‘J’ section trims to perimeter and ‘H’ section trims to horizontal joints.
PROCESSING OPTIONS:
Factory cut outs to accommodate control panels, ironmongery etc.
Site cutting possible.
COLOURS:
Please see Diamond Mirror Colour Guide for options.
NOMINAL THICKNESS:
18mm
BACKGROUND:
Block & brickwork, timber/metal studs
EDGE TREATMENT:
Polished all round (PAR)
WEIGHT:
11kg per m² (nominal)
MAXIMUM PANEL SIZE:
3000 x 1150mm
SAFETY:
Shatterproof: Impact resistant to BS 6206
Fire: BS 476 Part 6 & 7 Class 1. Complies with requirements for Class 0.
(see Test Data Summary Sheet)
JOINT TREATMENT:
Arrised butt vertical joint, bright polished anodized aluminium ‘H’ section trims to horizontal joints if required - refer to Product Manual or Chelsea Artisans for recommendations.
FIXING METHOD:
Adhesive and/or bright polished anodized aluminium ‘J’ section trims - refer to the Product Manual, Advice Manual or Chelsea Artisans for recommendations.
ACCESSORIES:
Purpose made bright polished anodized aluminium ‘J’ section trims to perimeter and ‘H’ section trims to horizontal joints.
PROCESSING OPTIONS:
Factory cut outs to accommodate control panels, ironmongery etc.
Site cutting possible.
COLOURS:
Please see Diamond Mirror Colour Guide for options.
